Input Frequency50/60 Hz self-adaptive
Plug TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);UK TYPE G;TYPE L (10A);Schuko
Output Frequency50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range210 VAC to 235 VAC
Transfer Time≤ 10 ms
WaveformPWM
Outlet TypeAU TYPE I;TYPE H;Type B (NEMA 5-15);Universal;TYPE L (10/16A)
Outlet Number2;Battery outlet*4 & Bypass*2
Battery Type12 V/9 Ah, lead-acid battery
Recharge Time 6-8 hours recover to 90% capacity
Typical Backup Time Run time at 500w: 20 - 25 min
Communicate Ports: USB
Full ProtectionSurge protection, Overload protection, Discharge protection, Short circuit protection

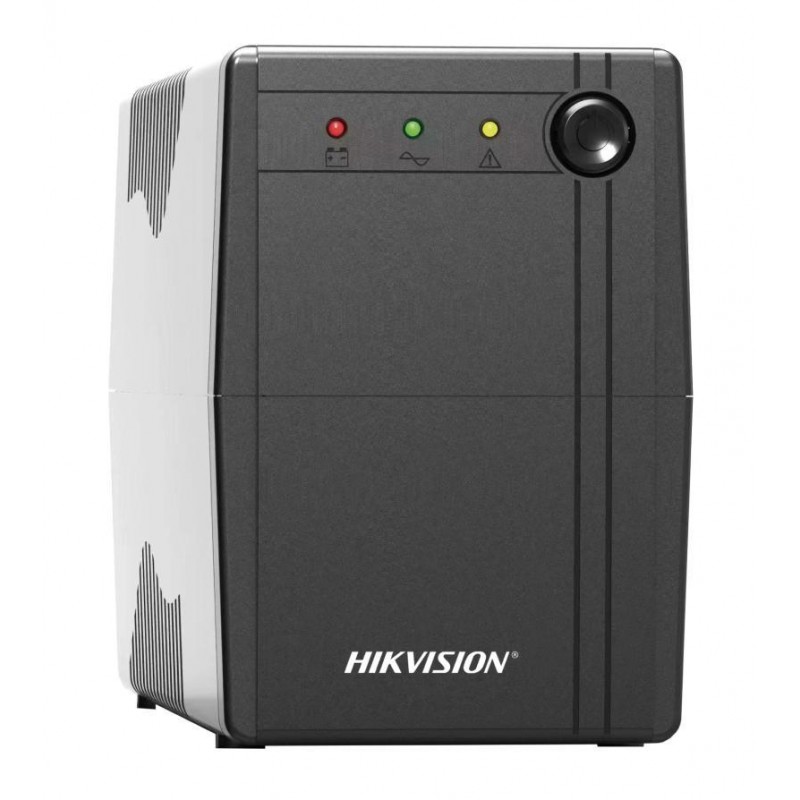

Display
LED indicator
Working Mode (AC Mode): Solid green
Charging Mode (DC Mode): Solid red
Overloading Mode: Flashing yellow
Charging Mode (DC mode): Sounding every 8 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
Dimension: 145 mm × 433.5 mm × 208.5 mm (5.71" ×17.07" × 8.21")
Weight Approx. 23 kg (50.71 lb)
