Description

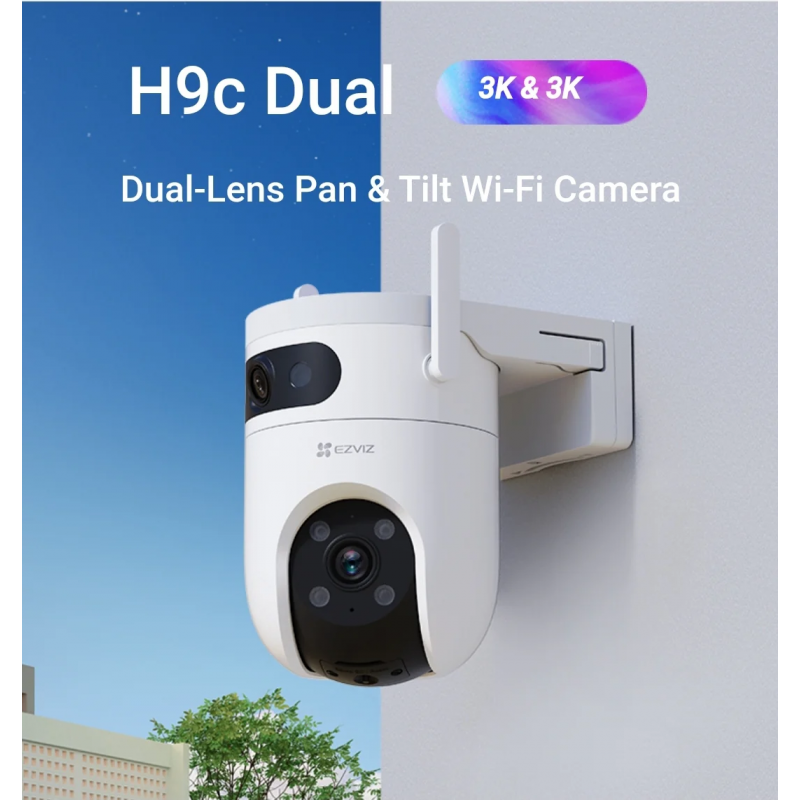

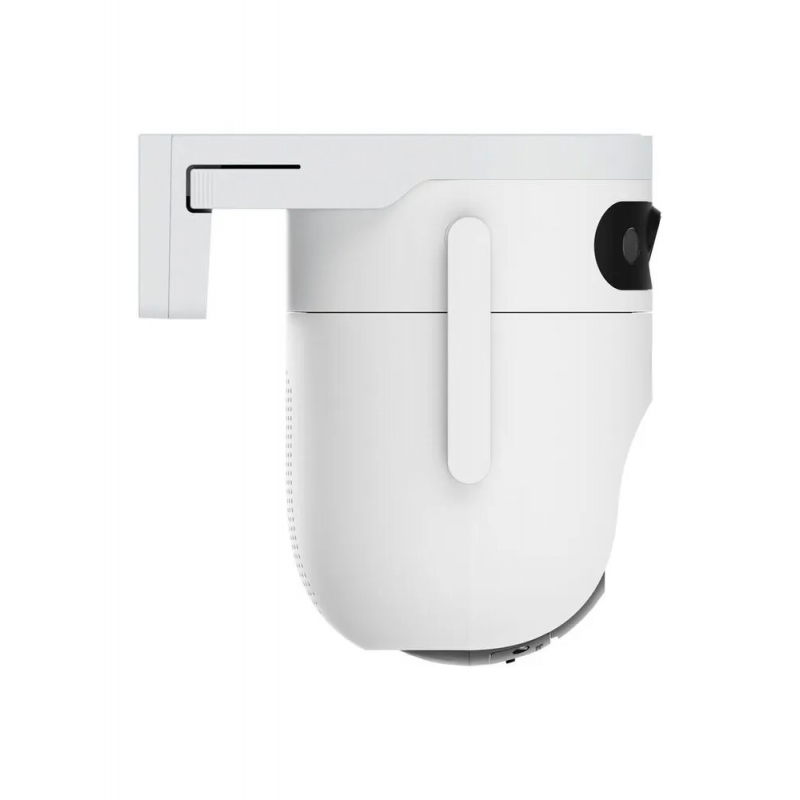

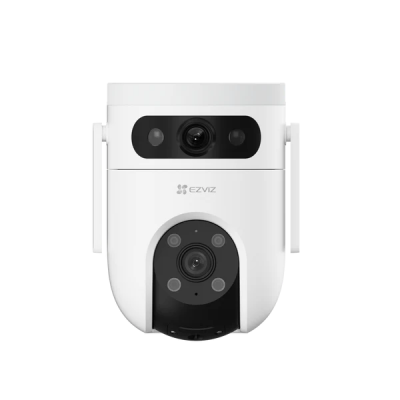

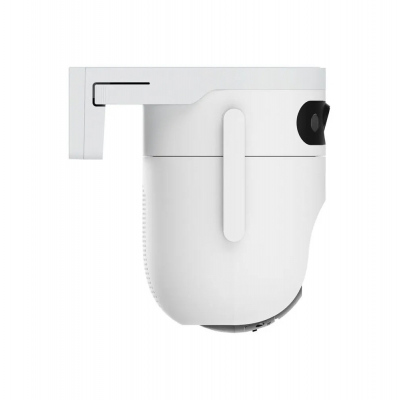

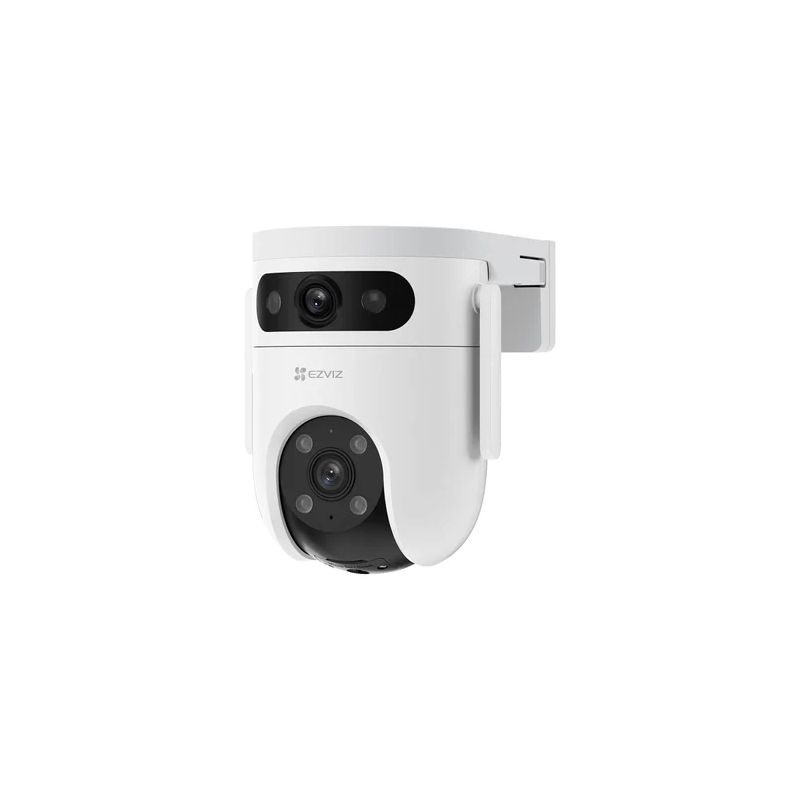

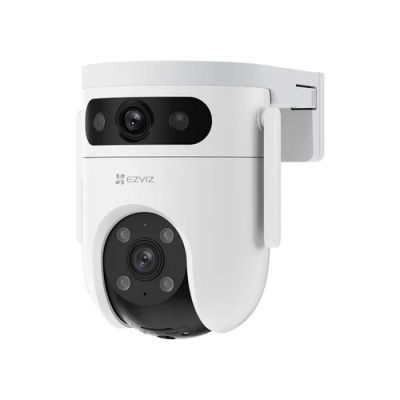

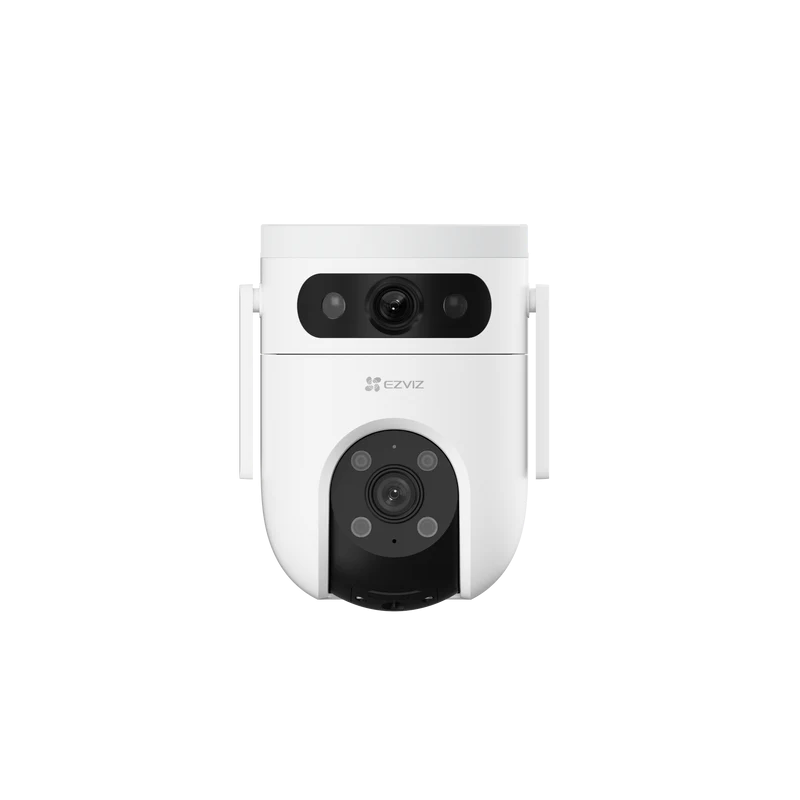

Ezviz H9C Dual 3K Camera
Specifications
Camera
Image Sensor: ½.7” Progressive Scan CMOS
Shutter Speed: Self-adaptive Shutter
Lens: Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan & Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29°
PT Angle: Pan: 350°, Tilt: 80°
Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut Filter with Auto Switch
DNR: 3D DNR
WDR: Digital WDR
Night Vision: 30m / 98ft
Video & Audio
Resolution: 2880 × 1620
Frame Rate: Max. 15fps; Self-adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Bands: 2.4GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP Pairing
Interface Protocol: EZVIZ cloud proprietary protocol
Functions
Smart Alram: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
Preset Locations: Supports
General Function: Anti-Flicker, Dual-Stream, Heartbeat, Password Protection, Watermark
Storage
Local Storage: Supports microSD card (max. 512 GB)
Cloud Storage: Supports EZVIZ Cloud Play storage (subscription required)
General
Operating Conditions: -30°C to 50°C (-22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V/1.5A
Power Consumption: MAX. 12W

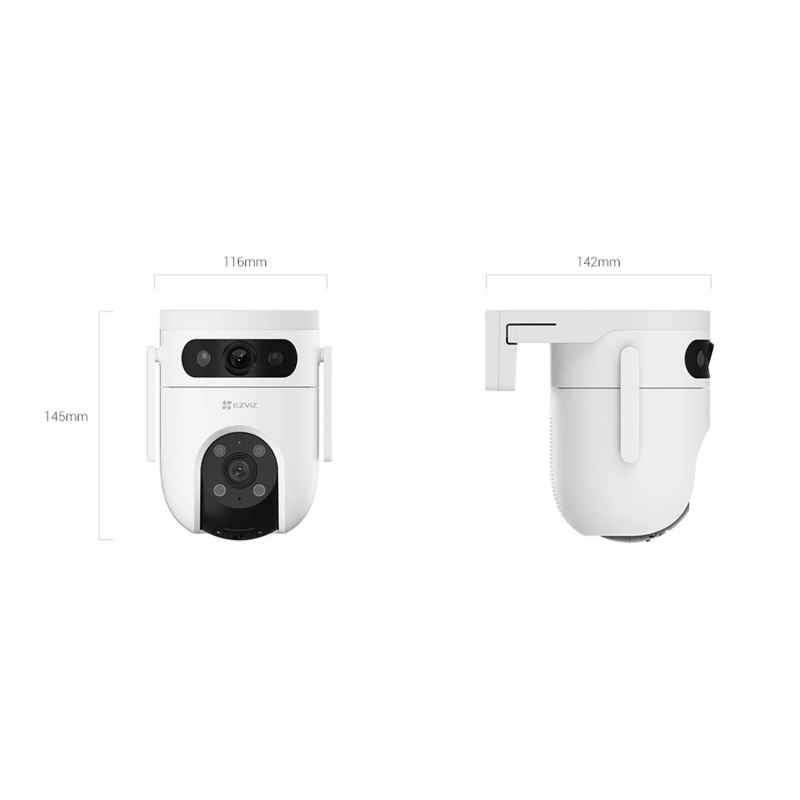

Dimensions (mm): 145 × 116 × 142
Packaging Dimensions (mm): 150 × 150 × 194
Weight: 960g
What’s in the Box:
Ezviz H9C Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
Warranty Period: 1 Year
