Description
Model: CS-RS20-MAX
Navigation
Navigation & Mapping: LDS LiDAR
Obstacle Avoidance: Laser Obstacle Detection & Avoidance AI Virtual Recognition and Marking (Identify 108 + obstacles)
Cleaning Features
Cleaning Features: Room, Full, Area
Cleaning Mode: Vacuum Only, Mop Only, Vacuum before Mop, Vacuum while Mop
Cleaning Frequency: 1,2
Vacuuming
Maximum Suction Power: 130000 Pa
Suction Level Adjustment: Quiet, Original, Powerful, Superpower
Main Brush Pressure Boost: Supports
Particle Identification & Boost Suction Mode: Supports

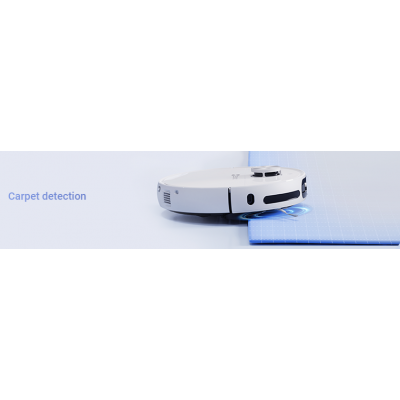

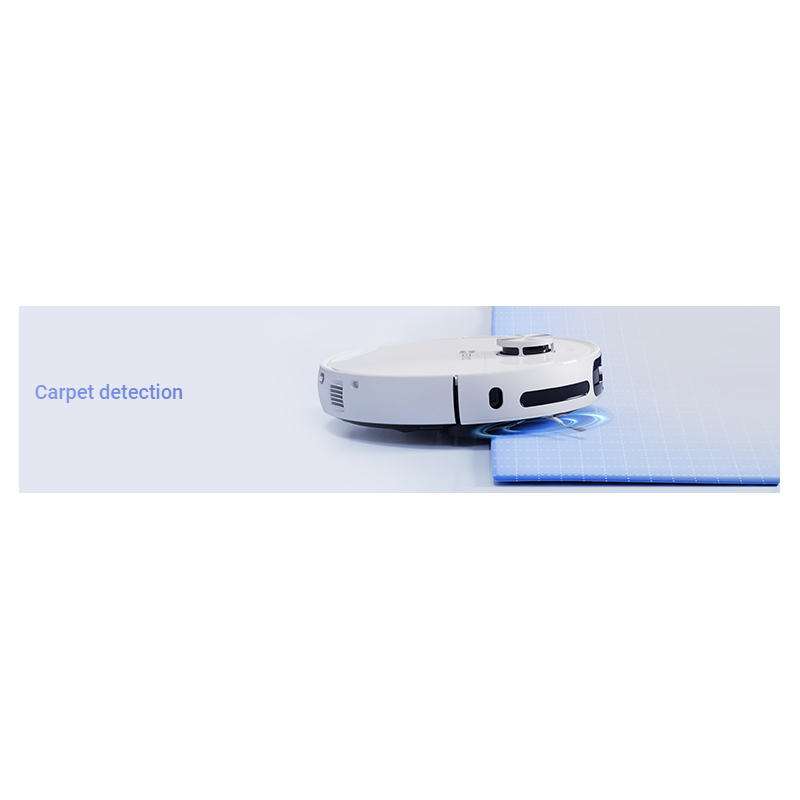

Ultrasonic Carpet Detection: Support
Mopping
Water Level Adjustment: Low, Medium, Max
Mopping Type: Dual Spin Mop
Cleaning Pressure: 10N
Mop Dimension: 113 cm2
Mopping Area: 300 m2
Hybrid Dynamic Edge Cleaning: supports
Runtime
Battery Capacity: Li-ion 5200 mAh
Charging Time: 3 Hours
Working Time: Silent Mode (Sweep) 220 min
Standard Mode (Sweep) 190 min
Silent Mode (Sweep & Mop) 130 min
Standard Mode (Sweep & Mop) 110 min
Smart Features
AI Task Automation: Supports
Smart Liquid Stain Detection: Supports—OTA Upgrade
Smart Floor Re-mopping: Supports (up to 3 times) —OTA Upgrade
In-Progress Task Adjustment: Supports (Temporarily add or skip cleaning task)
Wi-Fi / Smartphone App: Supports (EZVIZ App)
Wi-Fi Frequency Band: 2.4 GHz
Voice Control: Google Assistant & Amazon Alexa & Siri (third-party's)
Child Lock: Supports
Camera Resolution: 1920 x 1080
Smart Detection: Obstacle Recognition, Room Recognition & Mapping, Carpet Recognition, AI-Powered Human Shape Detection, AI-Powered Pet Detection, AI Task
Supported Language: Currently supports English (by default), German, French, Italian, Spanish, Portuguese, Polish, Arabic, Turkish, Vietnamese, Thai, Indonesian, Russian, Japanese, Korean, & Chinese, and will support more in the future

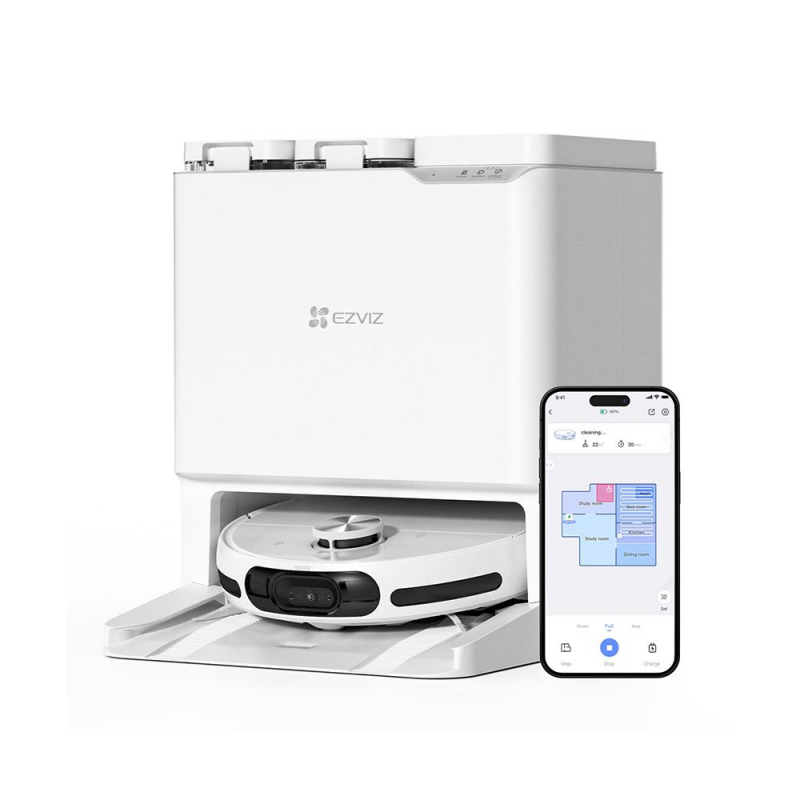

Base Station
Rated Power (Charging & mop drying state): 65W
Rated Power (Dust empty state): 965W
Rated Power (Cleaning with hot water state): 1265W
Voltage: AC: 220-240V ~50/60Hz
Rated Output: 20 V == 2.5 A
Clean Water Tank Capacity: 5 L
Dirty Water Tank Capacity: 4.2 L
Dust Bag Capacity: 5 L
Auto Hot Water Mop Washing: Supports (60°C)

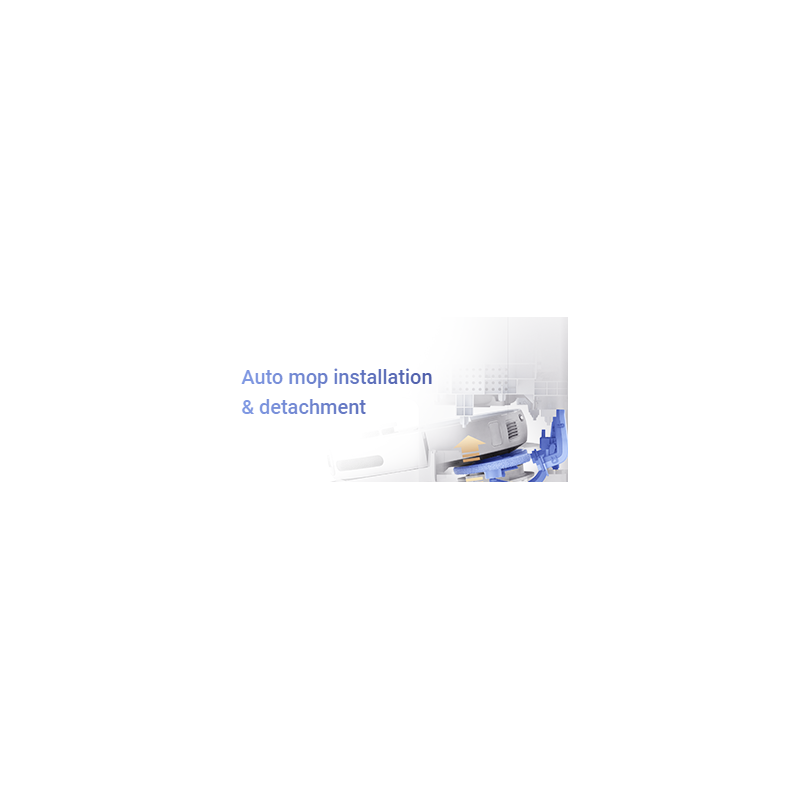

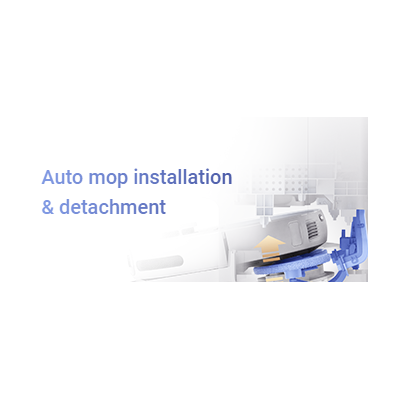

Auto Mop Installation & Detachment: Supports
Auto Side Brush Lifting: Supports
Auto Clean Water Refilling: Supports
Auto Cleaning Solution Adding: Supports
Low Water Level Alert: Supports
Auto Hot Air Dying: Supports
Interaction: Support
Robot
Rated Power: 65W
Voltage: 14.4V
Dust Box Capacity: 0.35L
Water Tank Capacity: 0.1L
Tangle Detection: Supports
Brush Type: 3-in-1 CutFree Brush 2.0
Auto Fill Light: Supports (With Spotlight)
Noise Level: 65dB on Standard mode (Sweep)
Robot Accessories
Dust Box Filter: E11 Level High Efficiency Filter
Washable Filter: Supports
Main Brush Type: Auto-lifting Main Brush
Main Brush Material: Rubber + Bristle + Hair Cutting Blade
Side Brush: Left + Right
Robot Part: Dust Bag Mop Cloth Side Brush Main Brush High Efficiency
Maintenance: - - 2 Weeks 1 Week 1 Week
Replacement: 3- 4 Months 2-3 Months 3-6 Months 6-12 Months 3-6 Months
* Accessories are considered consumables and regular maintenance and replacement are recommended. Due to their wear characteristics, they are not subject to the standard product warranty period.
General

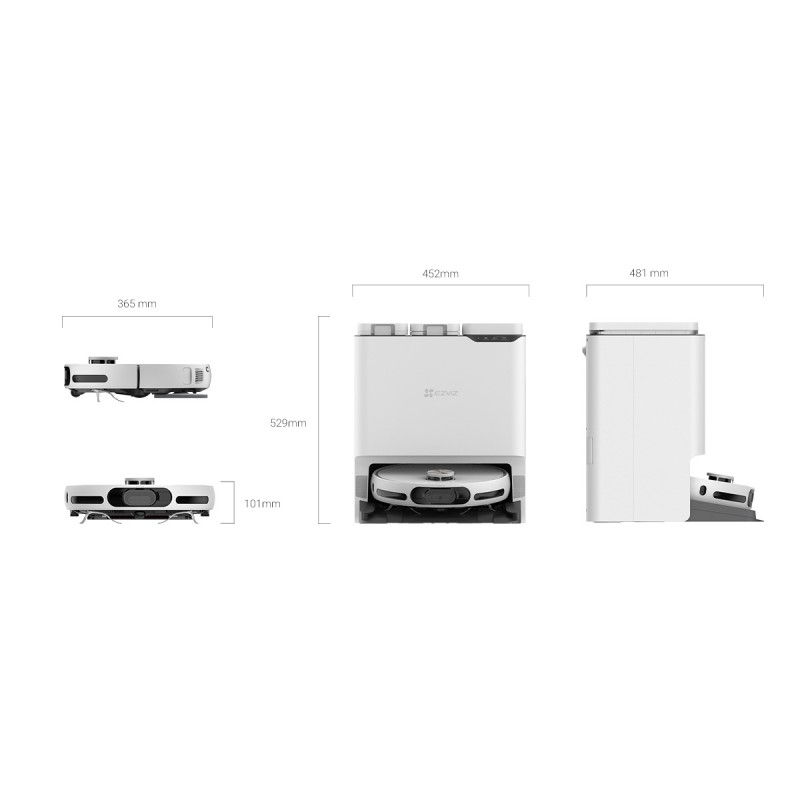

Product Dimensions (mm): 365 × 365 × 101 (Robot)
452 × 481 × 529 (Base Station)
Packaging Dimensions (mm): 520 × 538 × 582
Net Weight: 4.0 kg (Robot)
12 kg (Base Station)
Weight with Package: 23.36 kg
In The Box
|
Robot Vacuum & Mop Cleaner: 1
|
|
|
|
Base Station: 1
|
|
|
|
Side Brush: 2
|
|
|
|
Mop Assembly: 2
|
|
|
|
Cleaning Tool: 1
|
|
|
|
Cleaning Solution: 1
|
|
|
|
Power Cord: 1
|
|
|
|
Camera Sticker: 1
|
|
|
|
Quick Start Guide: 2
|
|
|
|
Regulatory Information: 1
|
|
|
Warranty Period: Functional Parts & Labour – 1 Year
